Morakot 4 in 1 ESC

---

 Morakot 4 in 1 ESC 45x46 mm is a high-performance electronic speed controller designed specifically for high-performance drones. Built on the STM32G microcontroller (Arm 32-bit Cortex-M0 @ 64MHz), it can withstand temperatures up to 125°C. It is engineered for long-endurance and aggressive flight, providing precise motor control and adaptive torque management, making it highly suitable for industrial drones and high-performance drones.

• MCU : STM32G071GBU6 (Arm 32-bit Cortex®-M0)
• Continuous Current : 60A/channel (4-in-1 total 240A)
• Instantaneous Current : 80A/channel (10sec)
• Input Voltage : 3S-8S (12.6-33.2V)
• PWM Frequency : 8-48 kHz (programmable)
• Protocols : DShot/300/600/ PWM
• Dimensions : 44.3×45×7 mm
• Board Weight : 16 g

This product is fully compliant with the U.S. National Defense Authorization Act (NDAA).
Relevant sections include:

• FY2020 NDAA Section 848
• FY2023 NDAA Section 817
• FY2024 NDAA / American Security Drone Act


Procurement and country-of-origin information for all components is available under NDA.
For details, please contact us at service@taiphoon.com.tw.

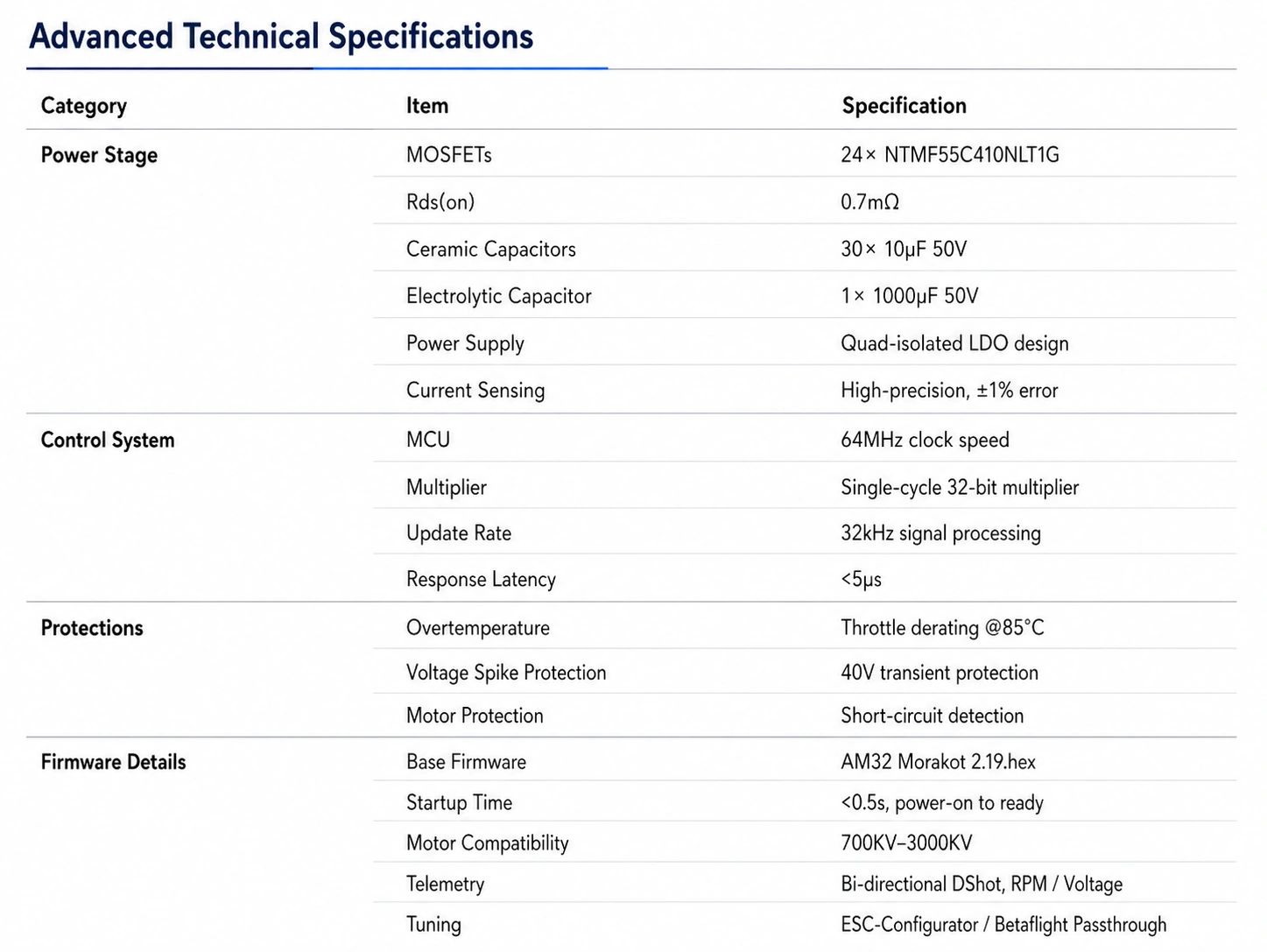

• MOSFETs : 24× NTMFS5C410NLT1G (0.7mΩ Rds(on))
• Capacitance :

                         30× 10μF 50v ceramic capacitors

                         1× 1000μF 50V electrolytic capacitor

• Power Supply : Quad-isolated LDO design
• Current Sensing : High-precision (±1% error)

• MCU : Performance 64MHz clock speed Single-cycle 32-bit multiplier
• Update Rate : 32kHz signal processing
• Response Latency : <5μs

• Overtemperature : Throttle derating @85°C
• Voltage spike protection : 40V transient
• Motor : short-circuit detection

• Base Firmware : AM32 _ESC GO71.hex
• Startup Time : <0.5s (Power-on to Ready)
• Motor Compatibility : 700KV - 3000KV
• Telemetry : Bi-Directional DShot (RPM/Voltage)
• Tuning : ESC-Configurator / Betaflight Passthrough

• 1× 1000μF 50V electrolytic capacitor
• 4× M3×8mm shock-absorbing balls
• 1× XT60 male 12AWG silicone cable (15cm)
• 1× JST-GH 1.0-8pin reverse silicone cable (10cm)

 For setup and usage instructions, please refer to the “Morakot 4 in 1 ESC” documentation at Taiphoon Product Docs.
